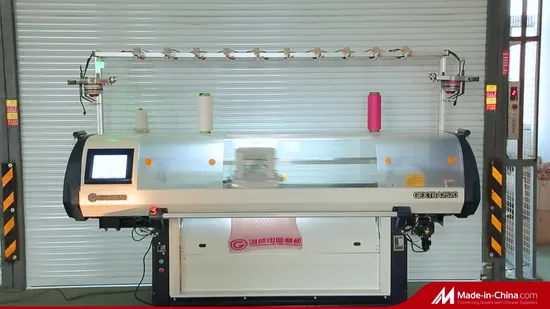

10g Double System Computerized Sweater Knitting Machine Pric

Basic Info.

Needle Bar Style	Flatbed Knitting Machine
Computerized	Computerized
Certification	CE, ISO9001: 2000
Condition	New
Cariage	Single Carriage
Apply	Sweater, Cap Scaf, Shoe Sheet
System	Dual System
Knitting Width	52 Inch
Gauge	7.2 Multi Gauge
Specification	7.2g multi gauge
Trademark	TECHKNIT
Origin	Zhangjiagang Jiangsu China
HS Code	84472020
Production Capacity	1000 Sets Per Month

Product Description

The best China made 2021 Fully Functional Computerized Flat Knitting Machine Only For Professional Knitwear Manufacturer (1) Brief of Machine
Fully Computerized Automatic Flat Knitting Machine based On
1-1 Compact Designed Layout of Machine with Single Carriage & Dual Knitting system
1-2 Gauge Number : 3G/5g/7g/8g/9g/10g/12g/14g/16g , 5/7G multi /6.2 G multi /7.2 G multi
1-3 Knitting Bed Size: Standard 52 Inch
1-4 Suitable For: Sweater/ scarf/ Hat/ Blanket / Shoe Upper Etc Knitting Fabric
1-5 Knitting Consturction: Fully Fashion ( Automatic plus & minus needles , Single Or double Jacquard , cable , Iran Etc Knitting Consturction
(2) We Careful manufacturering of Machine
2-1 Each Parts Will be 100% Inpect before instal on machine
2-2 Idle Running Machine before test for 48 Hours
2-3 Best Parts Supplier Quality Control System
2-4 Well test and fine corretion
2-5 Semi Automatic set up and test Line , 54 steps Test & Inspection Flowing Before on Board Ocean Vession
2-6 Well and fine Packing for safety delivery to client's warehouse
(3) Powerful Inside beyond Outside
3-1 Compact Carraige and cam system with Motor stitch (0-999 Level Stitch available Per panel )
With Knit /rest /tuck three way knitting technology make variety knitting construction available
1-8 Segment Needle selector , precise each needle under construction
3-2 Fine Stitch from Yarn : Up yarn tension and side Yarn Feeding device, which make yarn passing without heavy force

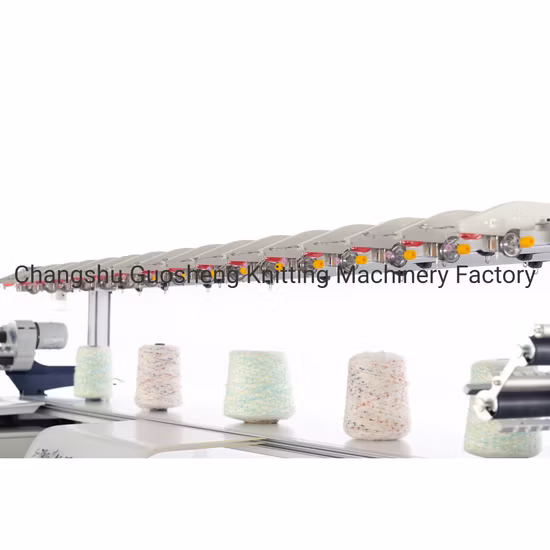

3-3 1-8 Yarn feeder On 4 rail guide, extendable of 16 Yarn feeder
3-4 High Position Rubber take down Roller, which Less Consume of connect yarn, Double sides powered which given equal take down force
3-5 Double Bed Racking which given Second time saving during knitting
3-6 Friendly Automatic Lubrication and clearing system
3-7 Center Remote Control System, which input the designs and backup machine running condition
3-8 Frinedly PDS design software
(4) Knitting In save & affordable way
4-1 Our mission is supply affordable flat knitter for garment manufactuer
4-2 Low investment on machine & equipment , with 30% Of investment valume , you will get same knitting output capacity comparing Stoll Machine & Sheim Seika Machine but very close functional
4-3 Much Lower running cost for Consume parts of machine
4-4 All for your knitting success
Specification

Model	Single carriage Double system Fully Computerized flat knitting machine
1	Gauge	5/7multi-gauge, 5g, 7g ,8g,10g,12g ,14g 16g
2	Knitting Bed	48 inch
3	Side Feeder	1 on each side
4	Head&system	Single carriage with double system
5	Knitting function	Transfer / knitting/miss/tuck three way knitting technology
6	Racking	Servo motor control double bed racking with fine adjustable
7	Detect Alarm and protection	Safety alarm detect device such as needle breakage/shock bed/yarn breakage/electric error ,yarn knots, floating, end of knitting, fail of racking Etc.
8	Transfer cam	Compact designed , transfer from front to rear and rear to front
9	Stitch	Controlled by stepping motor, ranges for all type yarn and sweater
10	Sinker	Controlled by stepping motor, adjustable to different knitwear
11	Yarn feeder	2*8 yarn feeder on 4 guide rails,shift able on any needle position
12	Roller	Rubber roller to save connecting yarn
13	Data input	USB driver for Design input, software update, machine & design parameter copy ,
14	Comb device	Power by Servo motor, with steady force With (option)
15	Scissors and clips	Equipped in both sides(option)
16	Monitor menu	Color monitor with knitting information displayed
17	Language Version	English & Chinese
18	Power	Single phase 220V 50HZ
19	Measurement & NW	2850*950*1800 1200KGS

Details ImagesApply for winter Warm Knitting Hat

Fully fashion & Jacquard Fashion Sweater

Much more specification available for your order1 Gauge: 2.5g 3g 3.5g 5g 7g 8g 9g 10g 12g 14g 16g, Multi 5/7G , multi 6.2g , Multi 7.2g2 Knitting Width: 48 52 inch, 68 inch , 80 Inch ,100 inch3 Knitting system and carriage: 3-1 Single carriage single system3-2 Single carriage Double system3-3 Single carriage three system3-4 Double carriage 1+1 System3-5 Double carriage 2+2 system3-6 Double carriage 3+3 System
Working With us , your invest will be safety & fast return We are at your side of Your knitting success
